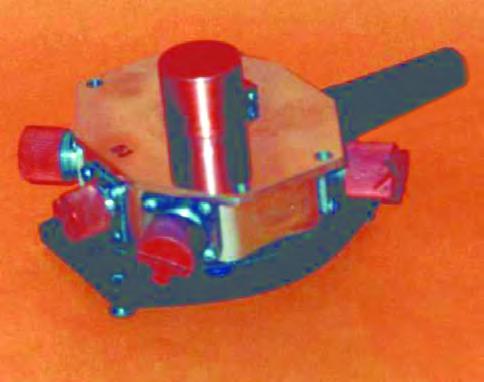

IDEA #2MWYQB Thermoelectric Cooling Sensor (tcs)

Areas of Application The device is to be used for analysis of rocks in deep well drilling. It can be used on interplanetary stations to determine the elemental composition of soil of the Solar System planets, as well Specifi cation Energy resolution, at least, еV Isolation resistance between disconnected electrical circuits, max Мohm Power consumption in the supply circuit of thermoelectric cooler, W Warm-up time, at most, min Supply voltage of thermoelectric cooler, V Pressure inside thermoelectric cooling sensor, at most, mmHg Cooling at an ambient temperature of 0 °C, at most, °С Weight, at most, g Operational life in continuous operating mode, at most, hours Operational life at periodic operating mode, at least, hours Probability of failure-free performance, at least, % Time of depressurization of thermoelectric sensor, at least, min 600 20 40 10 12 ± 5 5×10–3 –100 1500 2 30 99.9 5 Advantages The device provides an energy resolution of about 600 eV for energy of 5.9 keV, which enables determination of element concentration in soil of down to 10–6 Stage of Development. Suggestions for Commercialization IRL6, TRL6 The product is manufactured and supplied, upon request IPR Protection IPR3
