Areas of Application

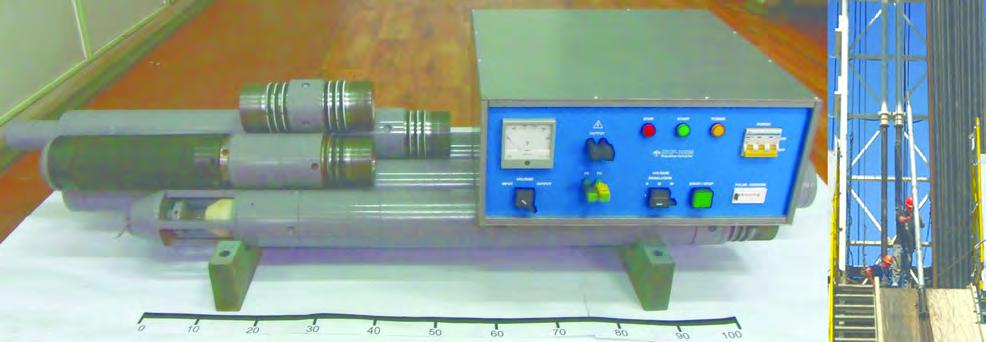

The device is to be used for treating the bottom-
hole zones and for increasing the productivity
of oil, gas, injection, and artesian wells
Specifi cation
Power consumption, kW · h
Overall dimensions
of the surface part, mm
Overall dimensions
of the submersible part, mm:
the surface part
the submersible part
Working temperature, °С
Hydrostatic pressure, MPa
Power supply
diameter
length, at most
Weight, kg:
2.0
555 × 500 × 245
102
4700
≤25
≤140
<100
<45
380 ± 10% V,
50 ± 1% Hz
Advantages
Environmental safety, high effi ciency,
and high success rate of treatment (≈80%);
aftereffect lasting from 10 to 24 months;
selectivity of effect in the localized area
of stratum; simplicity and reliability;
minimum power consumption; multiple
cyclic operation of set assembly.
Having been implemented on several
hundred wells in Ukraine, Kazakhstan,
China, and in other countries,
the device enables a more than 2 time
increase in fl ow rate of oil or water
IPR Protection
IPR3
Stage of Development.
Suggestions for Commercialization
IRL7, TRL8
Manufacture, delivery and maintenance
of the device through the warranty
period, as well as personnel training
are provided upon request
