Areas of Application
The device is to be used at healthcare centers
to identify bronchopulmonary, cardiovascular,
gastrointestinal, and other diseases, to control
the content of harmful gases in production
buildings, to monitor environment,
and to rapidly assess the human health
and workability. The analyzer can be used
in both stationary and fi eld conditions
Advantages
Unlike the domestic and foreign
counterparts, the device is 2-3 times cheaper,
portable, enables to study changes
in gas concentration in real time
IPR Protection
IPR3
Specifi cation

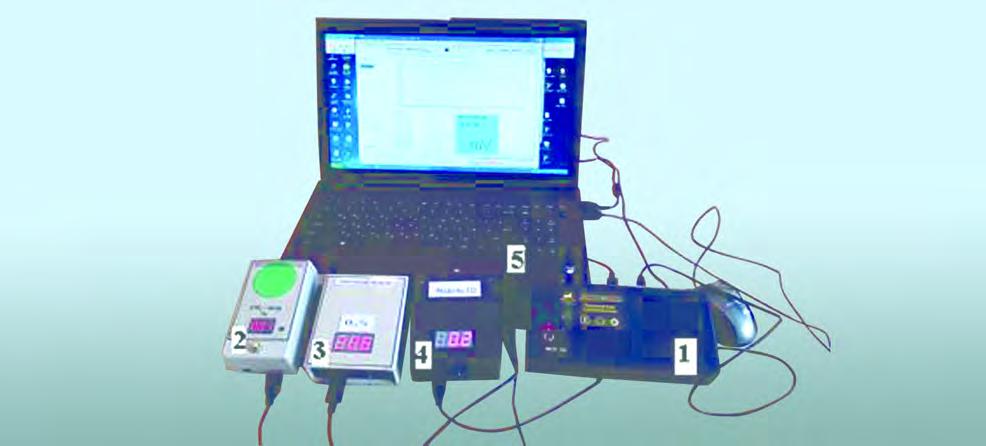

Three sensor modules (O2, CO2, CO);
possibility to connect up to 8 different sensor
modules that can also work individually,
for measuring ethanol, acetone, temperature,
humidity, pressure, and gas fl ow rate.
Measurement time, s
Range of concentration, %
10-60
СО2
О2
СО
0-5
error 0.5
0-21
error 0.5
0-1
error 0.5
Service life, years
10
Stage of Development.
Suggestion for Commercialization
IRL5, TRL5
Manufacture of small series, supply,
warranty maintenance,
and staff training, upon request
