Areas of Application

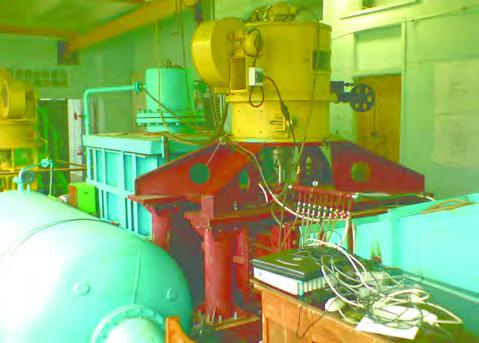

The hydromachine laboratory includes
two closed hydrodynamic trial stands
EСS-15 and EСS-30 designed
for comprehensive experimental research
while designing high-performance fl ow
passages of hydromachines; research studies
of working process in hydromachines;
and for acceptance tests of all types
of vertical reaction hydromachines
Specifi cation
The hydrodynamic laboratory
stands meet all recommendations
of the IEC 60193 international standard.
Diameter
of the model rotor, mm
Height of lift, m
Consumption rate, m3/s
Power of DC drive motors
of circulating pumps, kW
Power of balanced
engine, kW
≤160
≤200
350-380 350-400
≤ 12 (15) ≤ 25 (30)
≤0.56 (≤0.7) ≤0.3 (≤0.5)
≤160
≤180
Advantages
The hydrodynamic trial stands
are unique installations that surpass
the existing analogs in Ukraine in terms
of all basic indicators
Stage of Development.
Suggestions for Commercialization
IRL7, TRL5
Researches and acceptance tests
of all types of vertical reaction hydromachines
IPR Protection
IPR2
