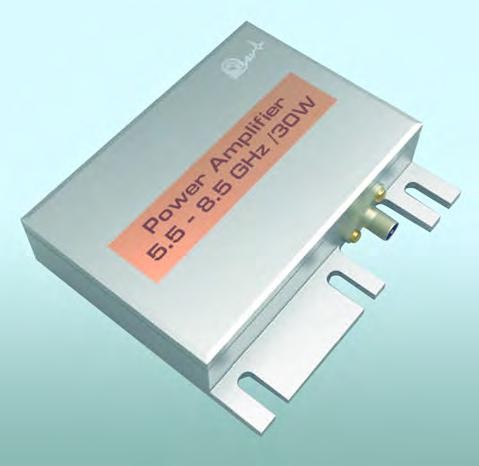

IDEA #9K8YYV C-band Power Amplifier

Areas of Application Radar and communication systems Specifi cation Operating mode Cooling Frequency range, GHz Narrowband mode, any sub-band, MHz Output power, W narrowband mode wideband mode Full power gain, dB Dimensions, mm Weight, kg Power consumption (max. CW mode), W Supply voltage, V Operation temperature range, °С CW or pulse conductive 5.5...8.5 ±200 >30 20 >17 0.25 100 × 100 × 20 110 +28 ± 1 –40...+55 Advantages Small size and low weight; the amplifi er can be confi gured either for narrowband or wideband mode; fully mismatched operation is admitted in the narrowband mode; the amplifi er contains an internal bias generator and protection circuits enabling its safe operation, including reverse battery and overvoltage protection up to ±60 V Stage of Development. Suggestions for Commercialization IRL8, TRL7 Manufacture, delivery, warranty service, and staff training, upon request IPR Protection IPR1
