Areas of Application

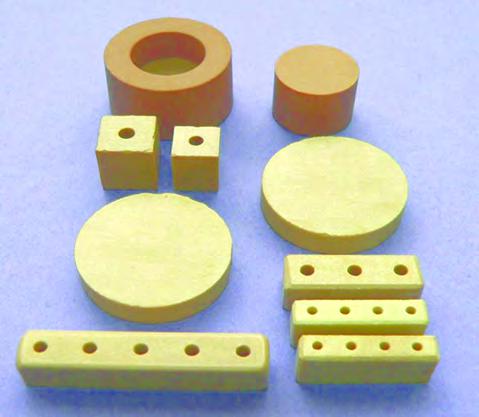

The dielectric resonators are to be used
in radio fi lters, diplexers, solid MW generators
of advanced communication systems
of centimeter and millimeter frequency ranges
Advantages
The dielectric resonators do not contain any
expensive components (tantalum or rare-earth
metals), which signifi cantly reduces their price.
They have a high quality factor and enable
changing the resonant frequency coeffi cient as
may be required, which ensures a sustainable
operation of communication systems in a wide
temperature range
Specifi cation
Dielectric permittivity
Q-factor
Resonant frequency
coeffi cients (cam be given
with an accuracy
of 1 ррm/К)
ε1 = 20-25,
ε2 = 30-35
Q × f = 100 000 (ε1),
Q × f = 80 000 (ε2)
τf = –5...+5 ppm/K
Stage of Development.
Suggestions for Commercialization
IRL7, TRL7
Manufactured, tested, and delivered,
upon request
IPR Protection
IPR1, IPR3
