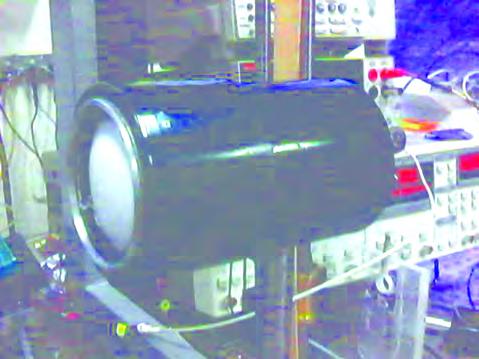

IDEA #92IM6O Thz/subthz Radiation Detector

Areas of Application The detector is to be used for registration and analysis of THz / sub-THz radiation in security systems to carry out nondestructive tests and to detect hidden objects Advantages The device is cheaper than the foreign counterparts Specifi cation Spectral range v, GHz Operating temperature T, К Noise equivalent power NEP140 ГГц, W/Hz1/2 Sensitive area S: without antenna, μm2 with antenna, mm2 Response time τ, s Signal at detector output, V Dimensions, mm Diameter of focused spot (DAiry(140 GHz)) ∅, mm ≈30-300 300 ≈(3-5)· 10–10 ≈40 × 40 ≈2 × 2 ≈10–7 ≈2.5 50×90 ≈5 Stage of Development. Suggestions for Commercialization IRL7, TRL8 Manufacture, delivery, warranty service, and staff training, upon request IPR Protection IPR1, IPR3
