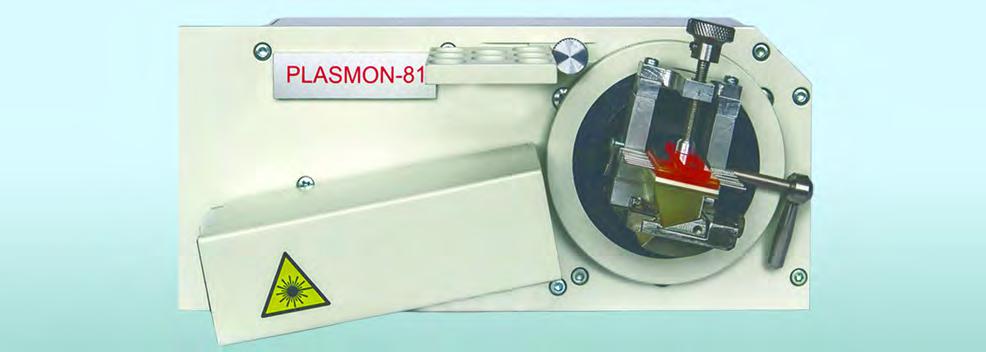

IDEA #8RTT0R Sensory Device Based On Surface Plasmon Resonance Phenomenon

Areas of Application The device is to be used for carrying out real-time biokinetic, immunosensing, and biosensing measurements; studying nanoobjects like nanoparticles or nanotubes; studying adsorption, corrosion, and electrochemical reactions; measuring refractive index of organic and inorganic fi lms; detecting gas and liquid composition; realizing chemosensor applications; and controlling motor oil quality and wear of meeting parts Advantages The device has no counterparts in Ukraine. It requires low doses of substances to be tested (in ml), is compact and cheaper than foreign analogs IPR Protection IPR3 Specifi cation Number of channels Refractive index measurement range Refractive index sensitivity Maximum time resolution of kinetics measurements, s Tracing measurement mode Slope measurement mode Angle-of-incidence precision, angular s GaAs semiconductor laser as light source Overall dimensions of the measurement unit, mm Weight, kg 2 1.0-1.45 0.00005 2 0.2 5 650 nm, 2-3 mW 215×130×100 2.5 Stage of Development. Suggestions for Commercialization IRL3, TRL4 Manufacture, delivery, warranty service, and staff training, upon request
