IDEA #2V806S Pyroelectric Usb Meter Of Laser Pulse Energy

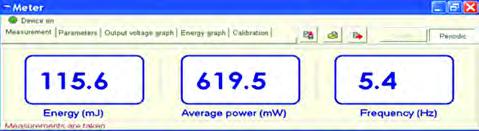

Areas of Application The device is to be used for measuring energy and time parameters of laser radiation in R&D centers, industry, and medicine Specifi cation Two types of laser energy meters are proposed: the energy meter with a thin sensitive element of absorptive type (VEP-1) and the energy meter with a transparent sensitive element for high energies measurements (VEP-9P); the measurements are made without interruption of process operations Основні параметри вимірювачів Wavelength range, μm 0.2-12.0 1· 10–6- Energy range, J 2.5· 10–3 Energy resolution, J Max energy density, J/cm2 Max pulse duration, ns 10–7 1.5· 10–2 0.35-4.5 2.5· 10–3- 5· 10–1 10–4 2.5 0.1-100 Advantages The compact pyroelectric meter of laser pulse energy and average power does not yield to the world leading counterparts. Its software enables data registration on PC via USB interface, without adapters Stage of Development. Suggestions for Commercialization IRL3, TRL4 Manufacture and warranty service, upon request; investors and corporations for commercial production are invited IPR Protection IPR3, IPR4
