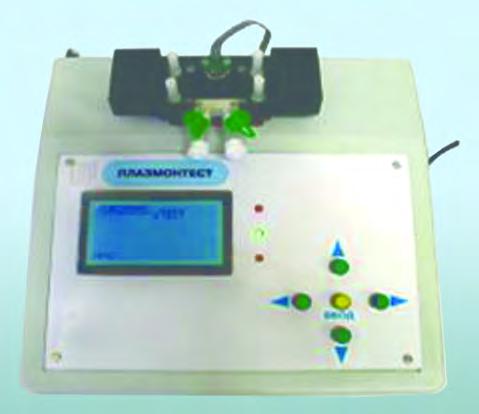

IDEA #4MR5UD Plasmontest Device

Areas of Application The device is to be used in medical and veterinary institutions for rapid diagnostics, food quality control, environment monitoring, and analytical measurements (registration of specifi c interaction of analyte (sample) molecules with selective layer deposited on the surface of sensor substrate). The device can be used as SPR sensor with gold layer substrates and as waveguide sensor with various sensor substrates Advantages Unlike the domestic and foreign competitors, the Plasmontest device is portable, 1.5–2 times cheaper, can be used both in stationary and in fi eld conditions. The double-channel modifi cation with a reference channel increases accuracy and compensates temperature instability Specifi cation There are single- and double-channel modifi cations. Service life, years Range of refraction index Divergence angle range, degree Absolute measurement error, degree Minimum time between measurements, s Stabilization of measuring cell temperature, oC 1· 10-3 0.5 ±0.1 10 1.33-1.38 ±3...±10 Stage of Development. Suggestions for Commercialization IRL5, TRL5 Manufacture of small batches, delivery, warranty maintenance, and staff training upon request IPR Protection IPR3
