Areas of Application

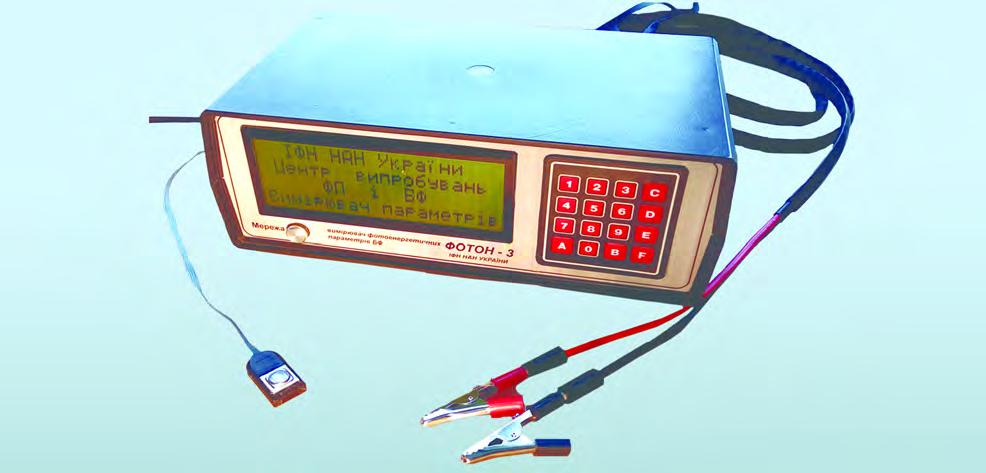

The device is designed to measure the
parameters of solar cells and photovoltaic
modules with a power up to 200 W in standard
spectral conditions (AM0, AM1.5) using solar
or artifi cial illumination
Advantages
There are no analogs in Ukraine. In comparison
with the existing world counterparts the device
can display measurement and calculation
results on the built-in LCD screen; is able to
operate both independently and with external
computer connected via USB
Stage of Development.
Suggestions for Commercialization
IRL6, TRL5
Manufactured upon request
0-10,
0-20, 0-50
0-0.25,
0-1, 0-8
≤4
250×160×90
Specifi cation
Voltage measurement ranges, V
Current measurement ranges, A
Measurement duration, s
Dimensions, mm
Relative errors of measurement
results, %:
current
voltage
maximum electric power
effi ciency
<±1.5
<±0.3
<±2.0
<5.0
IPR Protection
IPR1
