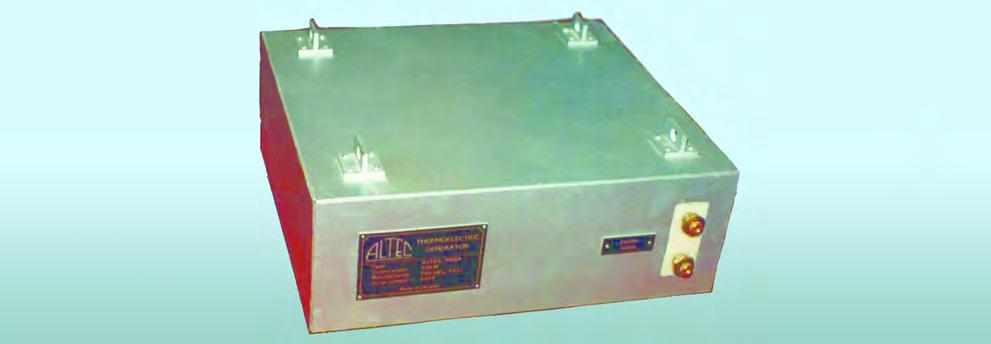

IDEA #16JVW7 Altec-8020 Thermoelectric Generator

Areas of Application The thermoelectric generator is designed for converting waste heat from industrial facilities and heat engines (internal combustion engines, gas turbines, etc.) into electric energy. It is an additional source of energy that can be used both for internal needs and for generation into external electric power systems Specifi cation Hot liquid temperature at the inlet, °С Hot liquid consumption rate, ml/s Hot liquid pressure at the inlet, MPa Cold liquid temperature at the inlet, °С Cold liquid consumption rate, ml/s Cold liquid pressure at the inlet, MPa Electric voltage, V Electric power, W Effi ciency, % Weight, kg 250 225 0.34 50 100 0.12 50 500 3.7 14 Advantages The use of generator enables to reduce fuel consumption by 5–7%. The device is an environment friendly source of electric energy Stage of Development. Suggestions for Commercialization IRL6, TRL6 Manufactured and supplied, upon request IPR Protection IPR3
